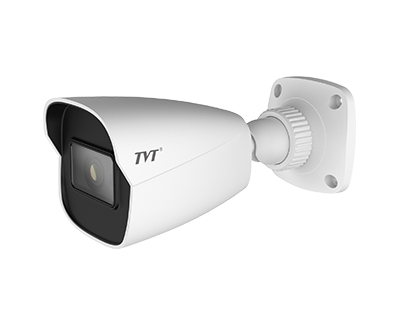

Cámara Seguridad IP TVT TD-9441E3 Ext 2,8 IR30 4MP
Inicia sesión como cliente para poder ver el precio
CAMARA SEGURIDAD IP TVT TD-9441E3 EXT 2,8 IR30 4MP
| Model | TD-9441E3 | |||
| Camera | ||||
| Image Sensor | 1 / 3 “CMOS | |||
| Image Size | 2592 × 1520 | |||
| Electronic Shutter | 1 /3s ~ 1 / 10000 s | |||
| Iris Type | Fixed Iris | |||
| Min. Illumination | 0.005 lux@F1.6,AGC ON;0 lux with IR | |||
| Lens | 2.8 mm@F1.6, Horizontal FoV: 96°; vertical FoV: 55°; diagonal FoV:115° | |||
| 3.6 mm@F1.6, Horizontal FoV:78.8°; vertical FoV: 42.3°; diagonal FoV: 100.2° | ||||
| Focus | Fixed | |||
| Lens Mount | M12 | |||
| Day & Night | ICR | |||
| Wide Dynamic Range | 120dB | |||
| BLC | Yes | |||
| HLC | Yes | |||
| Defog | Yes | |||
| Digital NR | 3D DNR | |||
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360° | |||
| Image | ||||
| Video Compression | Main stream: Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 | |||
| Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG | ||||
| Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG | ||||
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile | |||
| Resolution | 4MP ( 2592 × 1520 ), 2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), | |||
| 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 | ||||
| Main Stream | 4MP/2K/3MP/1080P / 720P( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) | |||
| HFR mode: 1080P / 720P( 60Hz : 1 ~ 60fps; 50Hz: 1~50fps ) | ||||
| Sub Stream | 720P/D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) | |||
| Third Stream | D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) | |||
| Bit Rate | 64 Kbps ~ 8 Mbps | |||
| Bit Rate Type | VBR / CBR | |||
| Audio Compression | G711A / U | |||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. | |||
| adjustable through client software or web browser | ||||
| ROI | Each ROI to be configured separately | |||
| Intelligent Analytics (Smart Events) | ||||
| Perimeter Protection | Line crossing, region entrance/exiting/intrusion (human/motor vehicle/ non-motor vehicle classification) | |||
| Statistics | Target counting by line/area, heat map | |||
| Exception Detection | Scene change, video blur and video cast detection | |||
| Face Detection | Face detection and face capture | |||
| Other Events | Abandoned/missing object detection | |||
| DORI Distance | ||||
| Lens | Detect | Observe | Recognize | Identify |
| 2.8mm | 57.17m(187.56ft) | 22.87m(75.03ft) | 11.43m(37.5ft) | 5.72m(18.76ft) |
| 3.6mm | 69.92m(229.39ft) | 27.97m(91.76ft) | 13.98m(45.86ft) | 6.99m(22.93ft) |
| Interfaces | ||||
| Network | RJ45 | |||
| Video Output | No | |||
| Audio | 1CH audio input | |||
| Storage | Built-in micro SD card slot; up to 256GB | |||
| Reset | Yes | |||
| Alarm | No | |||
| Functions | ||||
| Remote Monitoring | Web Browser/TVT NVMS2.0/NVR/mobile APP | |||
| Web Browser | IE(plug-in required)/Google Chrome/Edge/Firefox/Safari | |||
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission | |||
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTP POST, 802.1x, UPnP, HTTPs, QoS | |||
| Interface Protocol | ONVIF | |||
| Storage | Network remote storage; micro SD card storage | |||
| Smart Alarm | Motion detection, SD card error, SD card full | |||
| General Function | Watermark, IP address filtering, video mask, heartbeat, illegal login lock, image distortion correction, corridor pattern | |||
| PoE | Yes , IEEE802.3af | |||
| IR Distance | 20 ~ 30 m | |||
| Ingress Protection | IP67 | |||
| Others | ||||
| Power Supply | DC12V/PoE | |||
| Power Consumption | < 7.5W | |||
| Storage Conditions | – 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) | |||
| Operating Conditions | – 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing) | |||
| Dimensions ( mm ) | 167.5 × 74. 5 × 74. 5 | |||
| Weight ( net ) | Approx. 0.423KG | |||
| Installation | Ceiling mounting; Wall mounting | |||
| Certificate | CE, FCC | |||
| Environmental Protection | Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) | |||
